Sixth MPEG-4 AVC/H.264 Video Codecs Comparison - Short Version

MSU Graphics & Media Lab (Video Group)

Project head: Dr. Dmitriy Vatolin

Measurements, analysis: Dr. Dmitriy Kulikov,
Alexander Parshin

History of versions

  • 25th May 2010: Public report is released
  • 16th June 2010: Appendix with VP8 encoder analysis is released
  • Different Versions of Report

    There are four different versions of H.264 Comparison 2010 report:
  • MPEG-4 AVC/H.264 Video Codecs Comparison - Short Version (this report)
  • MPEG-4 AVC/H.264 Video Codecs Comparison - Pro Version (Movies Edition)
  • MPEG-4 AVC/H.264 Video Codecs Comparison - Pro Version (HDTV Edition)
  • MPEG-4 AVC/H.264 Video Codecs Comparison - Pro Version (Enterprise Edition)
  • Here is the comparison of the versions:

    Short Version Pro Version (Movies) Pro Version (HDTV) Pro Version (Enterprise)
    Objective Metrics (SSIM) YES YES YES YES
    Additional Metrics (PSNR) NO For all results SSIM and PSNR metrics are used For all results SSIM and PSNR metrics are used For all results SSIM and PSNR metrics are used
    Movie use case Only Normal preset High Speed, Normal, High Quality presets NO High Speed, Normal, High Quality presets
    HDTV use case NO NO High Speed, Normal, High Quality presets High Speed, Normal, High Quality presets
    Subjective Comparison NO NO NO SAMVIQ analysis including psycho-visual enhancements
    Additional Analysis NO NO NO Synthetic Motion Analyzer
    Additional Analysis NO NO NO Distortion in Tail Area Analyzer
    Additional Analysis NO NO NO Spatially Variable Noise Analyzer
    Number of pages 25 116 114 177
    Number of figures 50 131 131 226
    Prices Free $349 $349 $699
    Purchase Download pdf Buy Buy Buy
    Hint: You can remove "Extended download" service while purchasing to save money.
    We can help you to analyze your codec

    Pro versions of report will be available immediately after report purchasing.

    Html-Version of Report



    Video Codecs that Were Tested


  • DivX H.264
  • Elecard H.264
  • Intel MediaSDK AVC/H.264
  • MainConcept H.264
  • Microsoft Expression Encoder
  • Theora
  • x264
  • XviD (MPEG-4 ASP codec)

  • Overview


    Sequences

    Table 1. Summary of video sequences
    Sequence Number of frames Frame rate Resolution
    Ice Age 2014 24 720x480
    Indiana Jones 5000 30 704x288
    State Enemy 6500 24 720x304
    Up 1920 24 720x480
    Amazon 1200 24 1280x720
    Iron Man 600 24 1920x1080
    Mobile Calendar 504 50 1280x720
    Troy 300 24 1920x1072
    Brief descriptions of the sequences used in our comparison are given in Table 1. More detailed descriptions of these sequences can be found in
    Appendix 4. Test Set of Video Sequences

    Codecs

    Table 2. Short codec descriptions
    Codec Developer Version
    DivX AVC/H.264 Video Encoder DivX, Inc. version 1.1.1.6
    Elecard AVC Video Encoder 8-bit edition Elecard Ltd 2.1.022202.091207
    Intel MediaSDK AVC/H.264 transcoder sample application Intel Corp. 1.10.1.15
    MainConcept AVC/H.264 Video Encoder Console Application MainConcept GmbH 8.5.0.12837
    Microsoft Expression Encoder 3 Microsoft Corp. 3.0.1332.0
    Theora encoder Xiph.Org. Provided by developers
    x264 x264 Development Team x264 core:85 r1442M 781d300
    XviD raw mpeg4 bitstream encoder XviD Development Team xvid-1.3.0-dev
    Brief descriptions of the codecs used in our comparison are given in Table 2. XviD was used as a good quality MPEG-4 ASP reference codec for comparison purposes. Detailed descriptions of all codecs used in our comparison can be found in
    Appendix 5. Tested Codecs and Presets.
    Every codec developer could take private participation in this compasrison
    to test and analyze its codec.

    Objectives and Testing Rules


    H.264 Codec Testing Objectives

    The main goal of this report is the presentation of a comparative evaluation of the quality of new H.264 codecs using objective measures of assessment. The comparison was done using settings provided by the developers of each codec.

    The main task of the comparison is to analyze different H.264 encoders for the task of transcoding videoe.g., compressing video for personal use. Speed requirements are given for a sufficiently fast PC; fast presets are analogous to real-time encoding for a typical home-use PC.

    Testing Rules

  • The entire test set was divided into two primary types of applications. These applications differ by resolution, bitrate and encoding speed requirements:
  • Movies (bitrates of 500-2000 kbps)
  • High-definition television (HDTV; bitrates of 0.7-10 mbps)
  • There are special presets and speed limitations for every type of application:
  • Movies (speed requirements for 750 kbps 4CIF sequences):
  • Minimum 120 fps for "High Speed" preset (1 pass, no B-frames, 1 reference frame)
  • Minimum 80 fps for "Normal" preset)
  • Minimum 40 fps for "High Quality" preset
  • HDTV (speed requirements for 3 mbps 1280x720 sequences):
  • Minimum 100 fps for "High Speed" preset (1 pass, no B-frames, 1 reference frame)
  • Minimum 50 fps for "Normal" preset
  • Minimum 20 fps for "High Quality" preset
  • Each codecs developer provided settings for each type of application. Each settings individual parameters were, to a large extent, chosen by the developers, except the following:
  • DivX H.264
  • Microsoft Expression Encoder
  • Theora
  • Each codec was tested for speed three times; the minimum score was then used as the representative time.
  • During the testing process, source video sequences were in the YV12 format (.yuv file extension) for all codecs except Theora (.y4m with YV12)
  • For all measurements the PRO version of the YUVsoft Video Codec Scoring System was used
  • The following computer configuration was used for the main tests:
  • 4-cores processor: Intel Core i7 920, 2.67GHz
  • OS Name: Microsoft Windows 7 Professional 64-bit
  • Total Physical Memory: 6 GB
  • GPU: NVIDIA GeForce GTX 275
  • During the evaluation the following measures were used:
  • SSIM (Y components)
  • PSNR (Y components)
  • More detailed information about these measures may be found on the Internet at the Quality Measure page.

  • Results for Movies


    Full results for Movies could be found in professional versions of this report:
    H.264 Comparison Report Pro 2010 - Movie edition
    H.264 Comparison Report Pro 2010 - Enterprise edition
    This version contains only Y-SSIM results only for Normal preset.

    RD Curves

    The Normal preset results for each sequence are presented in next figures. The results do not depend strongly on the metric used. SSIM metric: The leader is x264; MainConcept placed second, and DivX H.264 placed third. For the "Ice Age" and "Up" sequences, the MediaSDK and Elecard encoders exhibited similar results. For the "Indiana Jones" and "State Enemy" sequences, the XviD encoder placed fourth.

    Encoding Speed

    Absolute speed results are presented in next figures. All the encoders except Microsoft Expression and Theora have a similar growth rate for encoding time versus increasing bitrate. Elecard is the fastest encoder. The encoding speed of the Microsoft Expression and Theora encoders exhibits almost no dependency on bitrate, and Microsoft Expressions encoding speed decreases at 1,200 kbps for the Ice Age sequence. XviDs encoding speed exhibits little dependency on bitrate for the Up sequence.

    Speed/Quality tradeoff

    Detailed descriptions of the speed/quality trade-off graphs can be found in Appendix 7. Sometimes, codec results are not present in the particular graph owing to the codecs extremely poor performance. The codecs RD curve has no intersection with the references RD curve.

    The speed/quality trade-off graphs simultaneously show relative quality and encoding speed for the encoders tested in this comparison. XviD is the reference codec, for which both quality and speed are normalized to unity for all of the graphs. The terms better and worse are used to compare codecs in the same manner as in previous portions of this comparison.

    Please note that the method of averaging among all sequences assumes that all codecs produced results for each sequence. When this is not the case, only existing results are taken into account.

    Next figures show results for the Normal preset. The results differ depending on the chosen metric.

    Y-SSIM: The three best codecs (no codec performs faster with higher quality) in terms of speed and quality are XviD, Elecard and x264 on average, except for the "Ice Age" and "Indiana Jones" sequences. The x264 encoder is better on average than DivX H.264 and MainConcept.

    Almost all encoders except Microsoft Expression exhibited better results on average than did Theora.

    Bitrate Handling

    Encoders with Normal presets, except the Microsoft Expression encoder, demonstrate good bitrate handling for all sequences. For the Up sequence, XviD showed less than stellar results, especially at high bitrates. For all sequences, MainConcept, x264, Elecard and DivX H.264 showed the best results compared with other encoders. DivX H.264s bitrate decreases at 1,500 kbps. MediaSDK slightly decreases bitrates, but the results are stable. Theora has a good bitrate handling mechanism but is not very stable.

    Relative Quality Analysis

    Next table shows relative bitrates for a fixed-quality output for all codecs. Note that these tables do not include information about the speed of the encoder.

    Note that each number in the tables below corresponds to some range of bitrates (see Appendix 7 for more details). Unfortunately, these ranges can differ significantly because of differences in the quality of compared encoders. This situation can lead to some inadequate results when three or more codecs are compared. This comparison technique will be improved in the future.

    The leaders are x264 and MainConcept, depending on the quality metric (the bitrate difference is 18% for a fixed quality).

    Table 3. Average bitrate ratio for a fixed qualityusage area Movies, Normal preset, Y-SSIM metric
    DivX H.264 Elecard Expression MediaSDK MainConcept Theora x264 XviD
    DivX H.264 100% 124% 127% 118% 87% 138% 76% 128%
    Elecard 81% 100% 103% 95% 70% 115% 61% 104%
    Expression 79% 97% 100% 93% 69% 114% 61% 101%
    Media SDK 84% 105% 107% 100% 74% 120% 64% 108%
    MainConcept 115% 142% 144% 136% 100% 157% 88% 145%
    Theora 72% 87% 88% 84% 64% 100% 57% 88%
    x264 131% 163% 164% 155% 114% 176% 100% 164%
    XviD 78% 96% 99% 93% 69% 113% 61% 100%

    Next figure depicts the data from the table above. Each line in the figures corresponds to one codec. Values on the vertical axis are the average relative bitrates compared with the codecs along the horizontal axis. A lower bitrate indicates better relative results.
    Average bitrate

    Results for HDTV


    Full results for HDTV could be found in professional versions of this report:
    H.264 Comparison Report Pro 2010 - HDTV edition
    H.264 Comparison Report Pro 2010 - Enterprise edition

    Speed/Quality tradeoff

    Detailed descriptions of the speed/quality trade-off graphs can be found in Appendix 7. Sometimes, codec results are not present in the particular graph owing to the codecs extremely poor performance. The codecs RD curve has no intersection with the references RD curve.

    The speed/quality trade-off graphs simultaneously show relative quality and encoding speed for the encoders tested in this comparison. XviD is the reference codec, for which both quality and speed are normalized to unity for all of the graphs. The terms better and worse are used to compare codecs in the same manner as in previous portions of this comparison.

    Please note that the method of averaging among all sequences assumes that all codecs produced results for each sequence. When this is not the case, only existing results are taken into account.

    Conclusions


    Movies

    The leading encoders in this usage area are MainConcept and x264. The quality of the Theora encoder is rather low.

    High Speed Preset

    The x264 encoder demonstrates better quality on average, and MainConcept shows slightly lower quality. These codecs bitrate handling algorithm is acceptable for this usage area. The MediaSDK codec places third, along with the dicas encoder (MediaSDK has slightly higher quality, but its encoding speed is 25% lower). The top four codecs for this preset are the following:
    1. x264
    2. MainConcept
    3. MediaSDK

    Normal Preset

    The results for the Normal preset differ from those for the High Speed presets only in third place. The x264 encoder demonstrates better quality on average, and MainConcept shows slightly lower quality. The DivX H.264 encoder holds third place. The top three codecs for this preset are the following:
    1. x264
    2. MainConcept
    3. DivX H.264

    High Quality Preset

    The results for this preset are similar to those of the Normal preset. The leaders are the x264 and MainConcept codecs. DivX H.264 takes third place. The top three codecs for this preset are the following:
    1. x264
    2. MainConcept
    3. DivX H.264

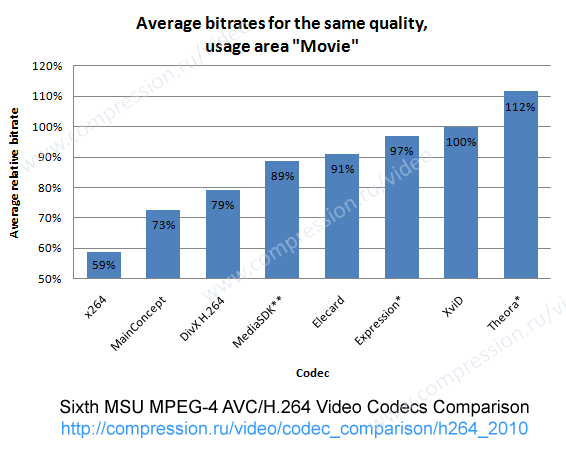

    Average bitrate for movies for all presets

    *The encoding speed of these encoders is not in the requirements range owing to our chosen presets or to a lack of options
    **The MediaSDK encoder does not meet the requirements for High Speed presetsspecifically, no B-frames and exactly one reference frame

    HDTV

    The leaders in the HDTV area are x264, DivX H.264 and MainConcept. The XviD encoder trails all other H.264 encoders. Theora demonstrates rather poor results compared with other encoders.

    High Speed Preset

    The x264 encoder demonstrates better quality on average, and MainConcept shows slightly lower quality. The top three codecs for this preset are the following:
    1. x264
    2. DivX H.264 (this preset does not meet speed requirements)
    3. MainConcept

    Normal Preset

    The results for the Normal preset differ from those of the High Speed presets. MainConcept shows the best results. The difference between best codecs are 2-4% of bitrate for the same quality. The top three codecs for this preset are the following:
    1. MainConcept
    2. x264
    3. DivX H.264

    High Quality Preset

    The results for the High Quality preset are very interesting: x264 held first place, MainConcept was in second place, and two codecs (DivX H.264 and Elecard) shared third place (their quality results are very close, but DivX H.264 is 1.2 times faster than Elecard). The top four codecs for this preset are the following
    1. x264
    2. MainConcept
    3. DivX H.264 and Elecard

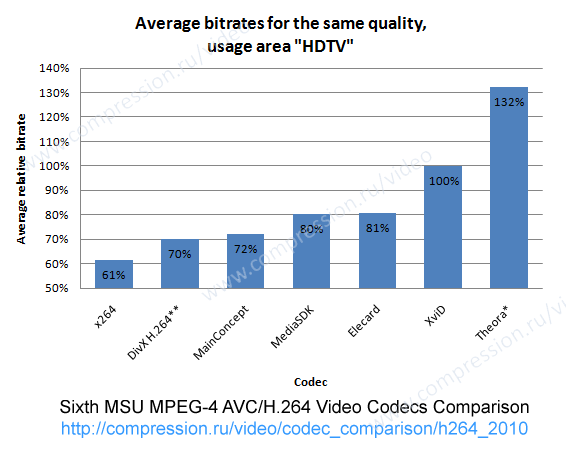

    Average bitrate for HDTV for all presets

    *The encoding speed of this encoder is not in the requirements range owing to our chosen presets or to a lack of options
    **The DivX H.264 High Speed preset for HDTV does not meet the speed requirements

    Overall Conclusions

    Overall, the leader in this comparison is x264, followed by MainConcept and DivX H.264. The Theora encoder demonstrates the worst results among all codecs tested.

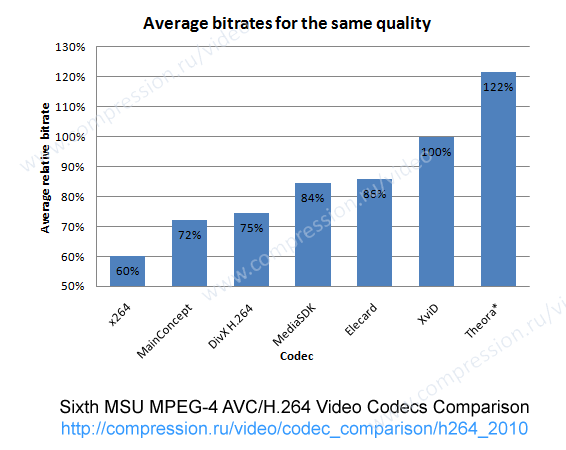

    Average bitrate for Movies and HDTV for all presets

    *The encoding speed of this codec does not fall in the required range owing to our chosen presets or to a lack of options.

    The overall ranking of the codecs tested in this comparison is as follows:

    1. x264
    2. MainConcept
    3. DivX H.264
    4. MediaSDK
    5. Elecard
    6. XviD
    7. Theora

    Microsoft Expression Encoder 3 could not be placed in this list because of its much longer encoding time compared with other encoders (except Theora).

    Using the standard Theora interface, we could not find any multithreading options; Theora works only in single-thread mode. The leader in this comparison is x264its quality difference (according to the SSIM metric) could be explained by the special encoding option ("--tune ssim"). Interestingly, using the PSNR metric for MainConcept yielded results comparable with or better than those of x264. This means that no encoder can achieve the best results for both SSIM and PSNR when using the same parameters.

    The difference between the MainConcept and DivX H.264 encoders is not overly significant, so these encoders tied for second in this comparison. The developers of the Elecard encoder do not provide a High Speed preset, so its ranking is based solely on the results for the Normal and High Quality presets. The dicas encoder holds third or fourth place for some sequences.

    This rank is based only on the encoders quality results. Encoding speed is not considered here.


    Codec Conclusion


  • DivX H.264 quite balanced encoder with not very big number of parameters, this fact could be comfortable for users. This encoder is designed as a free sample application for DivX Plus HD compliant video encoding, and is a feature-constrained, for-purpose application.
  • Elecard - very fast codec with good encoding quality and very flexible settings. Many adjustable encoding settings are provided. This encoder has a very good bitrate handling mechanism (especially for the Movies usage area).
  • Microsoft Expression Encoder the low encoding speed could result from the GUI loading every time a video is encoded. Unfortunately, we could not automate the encoder to eliminate this GUI loading.
  • MediaSDK balanced encoder with a limited number of parameters but several use cases (speed/quality presets), making the encoder very comfortable for users.
  • MainConcept one of the best codecs by encoding quality; has many encoding settings that can be adjusted. This encoder has a very good bitrate handling mechanism.
  • Theora not an H.264 codec. Using our testing methodology (objective metrics) and test set, this encoder yields lower quality than do H.264 codecs and even MPEG-4 ASP.
  • x264 one of the best codecs by encoding quality; has very user-friendly predefined presets, as well as many adjustable encoding settings.
  • XviD an MPEG-4 ASP codec; its quality could be very close to or even higher than that of some commercial H.264 standard implementations, especially for encoding Movie sequences, but not for HDTV sequences.

  • Professional Versions of Comparison Report


    H.264 Comparison Report Pro 2010 versions contain:
  • Additional objective metrics (PSNR)
  • Full information on Movies and HDTV usage areas, including three speed/quality presets
  • Full subjective comparison results
  • Additional quality analyzers
  • Much more pages and figures
  • etc.

  • Acknowledgments


    The Graphics & Media Lab Video Group would like to express its gratitude to the following companies for providing the codecs and settings used in this report:
  • Elecard Ltd
  • Intel Corporation
  • MainConcept GmbH
  • Theora Development Team
  • x264 Development Team
  • XviD Development Team
  • The Video Group would also like to thank these companies for their help and technical support during the tests.

    Thanks


    Special thanks to the following contributors of our previous comparisons

    Google Intel AMD NVidia
    ATI Adobe ISPhone dicas
    KDDI R&D labs Dolby Tata Elxsi Octasic
    Qualcomm Voceweb Elgato

    Appendixes


  • Appendix 1. Subjective Comparison and Psycho-visual Enhancements
  • Appendix 2. x264 Over-years Comparison
  • Appendix 3. Theora vs. x264 Single-thread Comparison
  • Appendix 4. Test Set of Video Sequences
  • Appendix 5. Tested Codecs and Presets
  • Appendix 6. Figures Explanation
  • Appendix 7. Objective Quality Metrics Description
  • VP8, x264 and XviD comparison

  • Codec Analysis and Tuning for Codec Developers and Codec Users


    Computer Graphics and Multimedia Laboratory of Moscow State University:

  • 8 years working in the area of video codec analysis and tuning using objective quality metrics and subjective comparisons.
  • 16 reports of video codec comparisons and analysis (H.264, MPEG-4 MPEG-2, decoders error recovery).
  • Methods and algorithms for codec comparison and analysis development, separate codecs features and codecs options analysis.
  • We could perform next task for codec developers and codec users.

    Strong and Weak Points of Your Codec

  • Deep encoder parts analysis (ME, RC on GOP, mode decision, etc).
  • Weak and strong points for your encoder and complete information about encoding quality on different content types.
  • Encoding Quality improvement by the pre and post filtering (including technologies licensing).
  • Independent Codec Estimation Comparing to Other Codecs for Different Use-cases

  • Comparative analysis of your encoder and other encoders.
  • We have direct contact with many codec developers.
  • You will know place of your encoder between other newest well-known encoders (compare encoding quality, speed, bitrate handling, etc.).
  • Encoder Features Implementation Optimality Analysis

    We perform encoder features effectiveness (speed/quality trade-off) analysis that could lead up to 30% increase in the speed/quality characteristics of your codec. We can help you to tune your codec and find best encoding parameters.

    Contact Information


    Call for codecs 2013
    See all MSU Video Codec Comparisons

    MSU video codecs comparisons resources:


    Other Materials


    Video resources:

    Fifth Report on S3D quality assessment (5 films) is released!
    Appendix to Eighth MSU .264 codec comparison is released

    Bookmark this page:   Add to Del.icio.us Add to Del.icio.us     Digg It Digg It     reddit reddit



    Last updated: 08-March-2013

    Search (Russian):
    Server size: 8069 files, 1215Mb (Server statistics)

    Project updated by
    Server Team and MSU Video Group


    Project sponsored by YUVsoft Corp.

    Project supported by MSU Graphics & Media Lab

    Rambler's Top100 @Mail.ru

    Table of Contents
